My B&K 1460 Oscilloscope

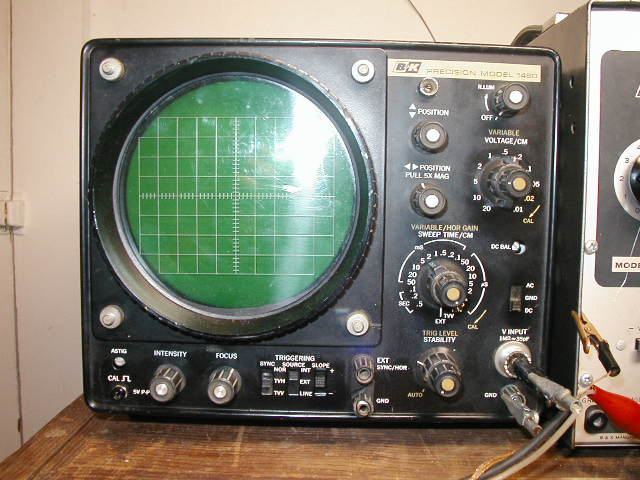

I just recently acquired this scope in mid October. It has been working very well. I gave it a cleaning and tightened the voltage/CM control assembly.

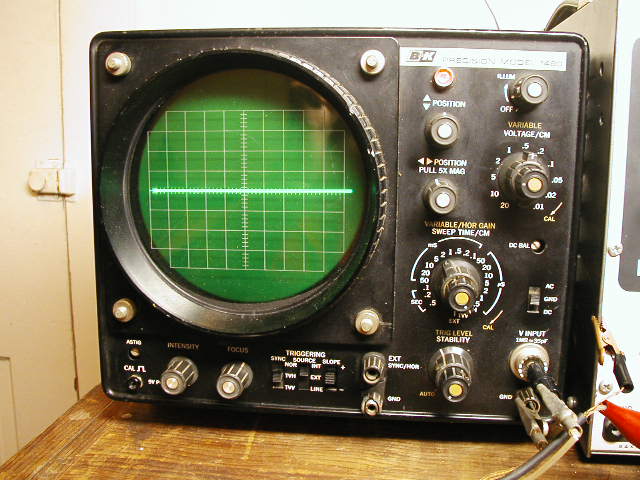

A picture of the scope working. It is displaying a horizontal line.

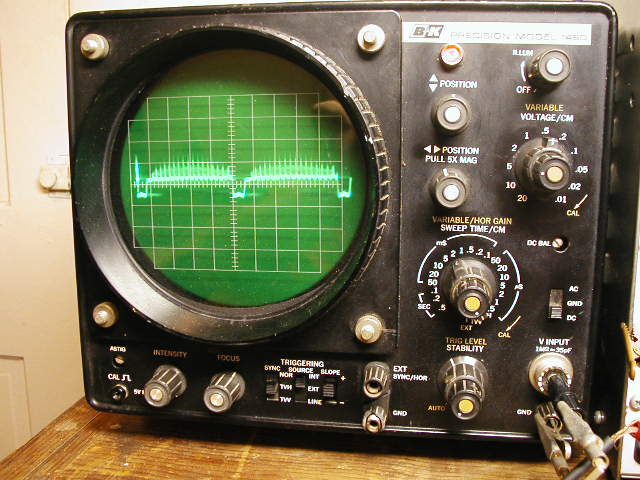

Another view of the scope, with a video signal from my B&K TV Analyst. The video image is a black screen with a white grid. The spikes are the vertical grid lines.

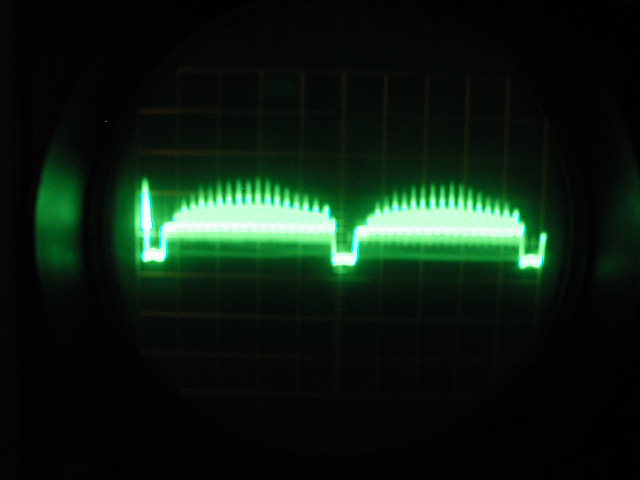

Below, a close-up of the screen displaying a trace.

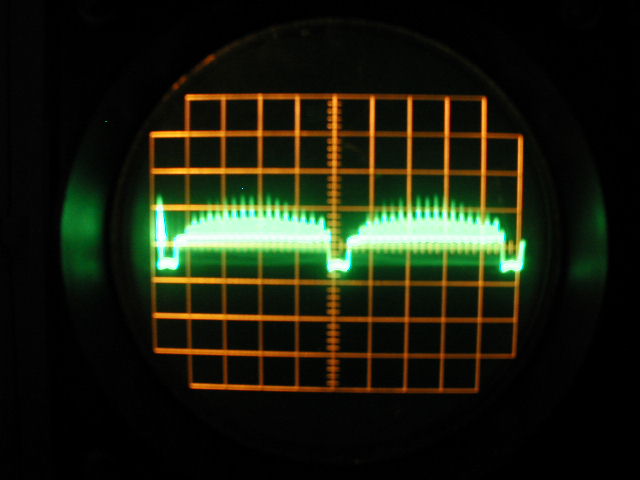

Below, another screen shot. This time, I have turned the grid brightness up.

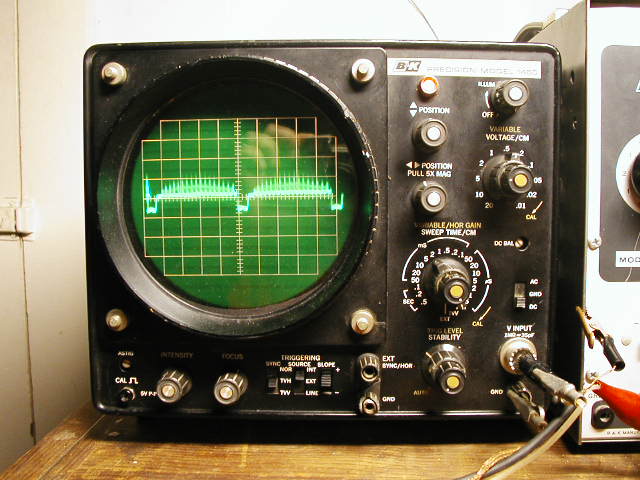

Below, another view of the scope. The grid brightness has been turned up in this photo.
